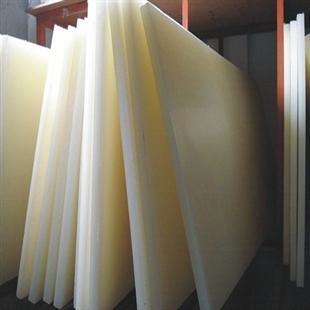

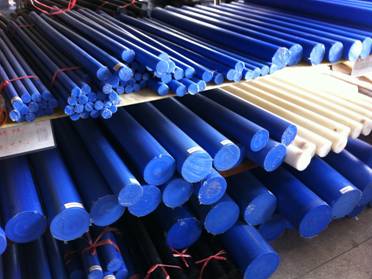

Nylon PA6

Nylon PA6 has high wear and abrasion resistance,with low coefficient of friction and high strength to weight ratio.

Nylon PA6 has corrosion resistance to alkalis and organic chemicals.Nylon is non-abrasive to other materials,has noise dampening characteristics and is also a good electrical insulator.But nylon materials are not UV stabilized.

Nylon PA6 has found wide application for bearings,bushings,washers,seals,gears,guides, rollers,wear plates,insulators,sleeves and many other parts.

Parts machined or fabricated from cast MC nylon are light weight and corrosion resistant.In addition,MC nylon's excellent load bearing capability,wear resistance and impact resistance make it ideal for demanding construction environments.

Technical Data

Property	Test Standard	Unit	PA6	PA66	PA+GF30	MC Nylon
Density	ASTM D792	g/cm³	1.13	1.14	1.34	1.15
Long Time Working Temperature	---	℃	85	95	120	105
Water Absorption	---	%	2	1.2	1.8	2
Yield Tensile Strength	ASTM D638	MPA	74	90	140	---
Tensile Strength	ASTM D638	MPA	50	40	50	75
Elongation at Break	ASTM D638	%	5	---	3.5	7
Hardness	ASTM D2240	Shore D	85	88	88	83
Impact Strength	ASTM D256	J/M	50	55	180	55
Melting Point	DSC	℃	220	225	230	220
Thermal Conductivity	23℃	w/(k-m)	0.23	---	0.25	---
Max.Working Temperature Shortly	---	℃	160	180	230	180
Linear Expansion Coefficient	ASTM D696	10-5-1/K	8	---	6.3	8
Volume Resistant	ASTM D257	Ω.cm	10¹²	10¹²	10¹⁵	10¹⁵
Surface Resistant	ASTM D257	Ω	10¹³	10¹³	10¹⁴	10¹⁵
Dielectric Constant	ASTM D150		4.2	---	5	3.7
Friction Coefficient	DIN 53375	---	0.36	----	---	---
Anti-U.V.	---	---	NO	---	---	---
