PVC



Polyvinyl chloride, PVC, has excellent strength-to-weight ratio and superior flame resistance, coupled with its low cost, make it the material of choice for the most demanding applications. PVC is an amorphous thermoplastic material with excellent chemical resistance and dielectric properties, good tensile, flexural and mechanical strength, low moisture absorption, exceptional dimensional stability and good flammability characteristics.

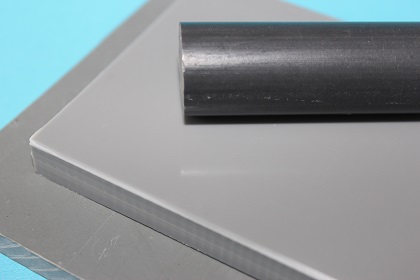

PVC sheet rod has excellent corrosion resistance and weather resistance. The working temp is 0℃~60℃. and the forming temperatures of 120℃. The physical properties of PVC can be readily altered by the addition of plasticizers, impact modifiers and other ingredients to develop and enhance specific properties.

PVC applications are almost unlimited. PVC is the most widely used member of the vinyl family and it is excellent when used for corrosion-resistant tanks, ducts, fume hoods and pipe. PVC is ideal for self-supporting tanks, fabricated parts, tank linings and spacers. PVC is not UV stabilized and not a FDA approved materials.

Technical Data


Properties

Test  Standard

Unit

Result

Density

ASTM  D-792

g/cm3

1.40

Long Time Working Temperature

---

60

Water  Absorption 23 24hrs

ASTM  D-570

%

0.2

Yield Tensile Strength 23

ASTM  D-638

MPA

50

 Tensile Strength

ASTM  D-638

MPA

---

Elongation  at Break

ASTM-D638

%

40

Yield  Flexural Strength

ASTM  D-790

MPA

80

Flexural  Modulus

ASTM  D-790

MPA

2400

Impact  Strength

ASTM  D-256

J/M

450

Hardness

ASTM  D-2240

Shore D

85

Melting  Point

DSC

120

Thermal  Conductivity

23

w/(k-m)

---

Heat  Deflection Temperature

ASTM  D-648

70

Linear  Expansion Coefficient

ASTM D-696

*10-5cm/cm/

5.8

Volume Resistant

ASTM D257

Ω.cm

1015

Surface Resistant

ASTM D257

Ω

1016

Dielectric Constant

ASTM D150

---

3.19

Friction Coefficient

ASTM D53375

---

0.6

Anti-U.V.

---

---

NO
