PTFE has a coefficient of friction that is one of the lowest of any material ,between 0.05 and 0.09 .PTFE also is extremely corrosion resistant ,especially to acids ,harsh inorganic and organic chemicals ,it is attacked only by the alkaline metals in the elementary state ,by Chlorine trifluoride and by elementary Fluorine at high temperature and pressures .In addition ,PTFE can withstand a wide of temperatures ,from 260℃ down to -180℃.
The extraordinary characteristics of PTFE makes it the ideal choice in a wide range of applications ,such as chemicals ,petrochemicals ,fertilizers ,agrochemicals ,dyestuff ,textile ,paper ,clothing ,building ,food processing plants and valves industries .

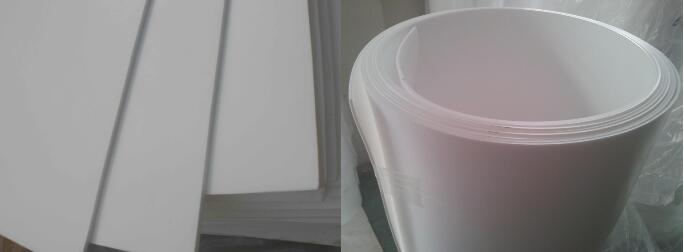

PTFE sheet is made from 100% virgin ptfe suspension resin ,we have two kinds of sheet ,ptfe skived sheet ,thickness 0.3mm to 4mm ,width 2000mm max.PTFE molded sheet ,thickness 4mm to 100mm ,max. dimension 1500mm*1500mm.
Product Name | Width*Length (mm) / Width(mm) | Thickness (mm) | ||
Molded PTFE Sheet | 300*300 | 500*500 | 600*600 | 4,5,6,8,10,12,15,20,25,30, 35,40,45,50,55,60,70,80,90,100. |
1000*1000 | 1200*1200 | 1500*1500 | ||
| Width(mm) | Thickness (mm) | ||
Skived PTFE Sheet (Roll) | 300 | 500 | 1000 | 0.3,0.4,0.5,0.6,0.8,1,1.5, 2,2.5,3,4. |
1200 | 1500 | 2000 | ||
Technial Data
Property | Unit | Typical Data | Result | |
Density | g/cm3 | Molded PTFE Sheet | 2.1~2.3 | 2.16 |
Skived PTFE Sheet | 2.1~2.3 | 2.16 | ||
Tensile Strength | MPA | Molded PTFE Sheet | 15.0 | 25 |
Skived PTFE Sheet | 20.0 | 28 | ||
Elongation at Break | % | Molded PTFE Sheet | 150 | 250 |
Skived PTFE Sheet | 250 | 300 | ||
Hardness | Shore D | Molded PTFE Sheet | 50~60 | 55 |
Skived PTFE Sheet | 50~60 | 54 | ||
Material Types:Virgin ,Filled .
Available Filled Materials :Carbon ,Graphite ,Glass Fiber ,Bronze ,Copper ,Moly_Disulphide.
